Filter Bank in Signal Processing: Types, Applications, and Modern Advances Explained

Let’s be honest—if you’ve ever dived into the world of digital signal processing, you’ve definitely come across a filter bank. But what exactly makes it such a vital tool? From audio compression to communication systems, filter banks quietly power the technologies we use every day.

Whether we’re talking about the Discrete Cosine Transform (DCT) for image compression or more sophisticated structures like the polyphase filter bank and Gabor filter bank, these systems split signals into components that are easier to analyze and manipulate.

You’ll also run into specialized types like the Mel filter bank, essential for speech and audio recognition, and advanced communication methods like Filter Bank Multicarrier (FBMC), a promising alternative to traditional multicarrier schemes like OFDM.

How Filter Banks Work

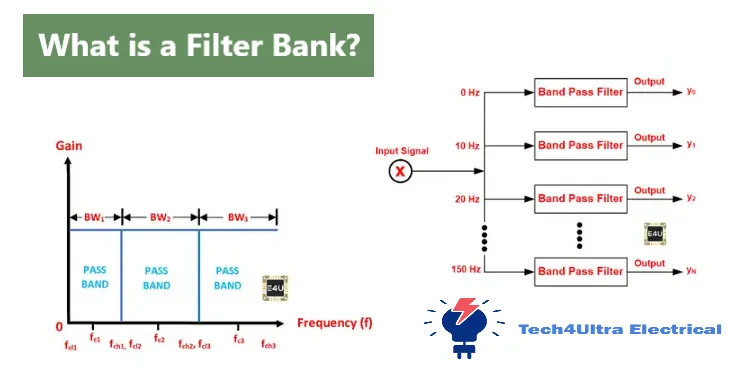

At the core of every filter bank system is the goal of breaking down a signal into manageable parts—this process is known as signal decomposition. Imagine trying to study a symphony by listening to every instrument at once; filter banks help us isolate the instruments. By using a bank of filters, each designed to capture a specific frequency range, we can split the input signal into multiple components called subbands.

Signal Decomposition

During signal decomposition, the input signal is passed through multiple filters. Each filter extracts a different portion of the frequency spectrum, enabling a detailed analysis of the signal’s structure. This is especially useful in systems that rely on spectral information, like Mel filter banks in speech recognition or Gabor filter banks in texture analysis.

Subband Filtering and Synthesis

Once a signal has been decomposed into subbands, each subband can be processed independently. This is where subband filtering comes into play. After processing, the signal is reconstructed in a process called synthesis. High-performance systems often use polyphase filter banks to efficiently manage the decomposition and synthesis with minimal loss.

Time-Frequency Transformation Basics

Filter banks operate in both time and frequency domains, making them ideal for time-frequency transformation tasks. Unlike simple Fourier methods, filter banks like the Filter Bank Multicarrier (FBMC) or Discrete Cosine Transform (DCT) provide localized analysis, preserving the temporal features of the signal. This dual-domain approach is what makes them powerful in applications ranging from wireless communication to image and audio processing.

Key Types of Filter Banks

A. DCT Filter Bank

The Discrete Cosine Transform (DCT) filter bank is a fundamental tool in image and audio compression. It converts signals into sums of cosine functions at different frequencies, focusing on energy compaction. That’s why it’s the backbone of formats like JPEG and MP3. In a DCT filter bank, the signal is segmented into blocks and each block is transformed individually. This technique is especially efficient for signals with strong low-frequency components, making it ideal for scenarios where storage and bandwidth are at a premium.

B. Polyphase Filter Bank

The polyphase filter bank is the Swiss Army knife of filter bank structures—compact, efficient, and flexible. It breaks down the filtering and decimation process into smaller, more manageable stages using polyphase components. This allows for parallel processing and significantly reduces the computational load, which is crucial in real-time applications like digital TV or wireless communication systems. In multicarrier transmission systems such as Filter Bank Multicarrier (FBMC), polyphase implementations are preferred due to their low spectral leakage and precise time-frequency localization. Additionally, this type of filter bank minimizes aliasing, improving signal fidelity. Whether you’re building a spectrogram analyzer or a software-defined radio, polyphase filter banks are a top choice due to their efficiency and adaptability.

C. Gabor Filter Bank

Inspired by human vision, the Gabor filter bank is a set of band-pass filters used for analyzing spatial frequencies in signals, particularly images. Each filter is a sinusoidal wave modulated by a Gaussian function, allowing precise control over frequency and orientation. These filters are especially popular in pattern recognition and texture analysis because they mimic how our eyes process visual information. A Gabor filter bank can extract local features with both spatial and frequency resolution, making it invaluable in fields like biometrics, where it’s used for fingerprint and iris recognition.

D. Mel Filter Bank

When it comes to speech and audio processing, the Mel filter bank is indispensable. Built on the Mel scale—which models human auditory perception—it converts frequencies into a format more aligned with how we actually hear. In systems like speech-to-text and voice assistants, Mel filter banks form the basis of Mel-frequency cepstral coefficients (MFCCs), the features used to train machine learning models. These filters emphasize frequencies most relevant to human ears, making them highly effective for noisy environments. If you’ve ever used Siri or Google Assistant, chances are a Mel filter bank played a part in understanding your voice.

E. Wavelet-Based Filter Banks

Wavelet-based filter banks fill a unique niche in signal processing by offering both high temporal and frequency resolution. Unlike Fourier-based methods that use sinusoids, wavelets use scalable functions that can adapt to different signal characteristics. These filter banks are used extensively in image compression (like JPEG 2000), seismic data analysis, and biomedical applications such as EEG signal interpretation. They decompose a signal into approximation and detail coefficients at multiple scales, providing a multi-resolution analysis. This makes wavelet-based filter banks particularly powerful for analyzing non-stationary signals where frequency content changes over time.

Read Also: Understanding the Schottky Effect: Field Enhanced Thermionic Emission Explained in Depth

Filter Bank Multicarrier (FBMC): Next-Gen Communication

Filter Bank Multicarrier (FBMC) is gaining attention as a powerful alternative to traditional multicarrier schemes like OFDM. At its core, FBMC uses a bank of filters to divide the bandwidth into narrow, overlapping subchannels, allowing for precise spectral control. Each subcarrier is shaped with a prototype filter that significantly reduces spectral leakage—a key limitation in older systems.

What is FBMC?

FBMC is a multicarrier transmission technique that improves upon OFDM by eliminating the need for a cyclic prefix and using well-localized filtering in both time and frequency domains. This enables more efficient use of bandwidth and better performance in highly dispersive channels. FBMC also supports asynchronous transmissions more gracefully, which makes it ideal for complex environments like the Internet of Things (IoT).

Comparison with OFDM

Unlike OFDM, which suffers from high out-of-band emissions and strict synchronization requirements, FBMC offers better spectral efficiency and reduced interference. OFDM relies on rectangular pulse shaping, which leads to leakage into adjacent bands. FBMC, with its polyphase filter bank structure, minimizes these drawbacks, providing cleaner transmission.

Use in 5G/6G Networks

With 5G already pushing the limits of mobile data, and 6G on the horizon, FBMC is being considered as a strong candidate for future radio interfaces. Its ability to handle fragmented spectrum and support high mobility makes it especially suited for next-generation wireless networks that demand flexibility, efficiency, and reliability.

Applications of Filter Banks in Engineering

Audio Signal Processing

From MP3 players to noise-canceling headphones, filter banks are everywhere in the world of audio. They allow engineers to break down audio signals into subbands, making it easier to isolate and manipulate specific frequency components. Techniques like the Mel filter bank are essential for extracting meaningful features in speech recognition systems. Meanwhile, DCT filter banks play a key role in audio compression, enabling high-quality sound with minimal storage. Whether it’s equalizing music or analyzing voice commands, filter banks make audio smart and efficient.

Image Compression

Ever wonder how your smartphone stores thousands of high-resolution images? Enter Discrete Cosine Transform (DCT) and wavelet-based filter banks. These methods break down images into frequency components, allowing redundant or less important information to be discarded. JPEG compression relies heavily on DCT filter banks, while newer formats like JPEG 2000 utilize wavelets for better scalability and quality at lower bitrates. By isolating edges, textures, and fine details, filter banks help strike a balance between file size and visual fidelity.

Wireless Communication

In wireless systems, clean transmission and bandwidth efficiency are crucial. This is where polyphase filter banks and FBMC come in. Unlike traditional OFDM, which wastes spectrum with guard intervals, Filter Bank Multicarrier (FBMC) offers tightly packed, spectrally efficient signals. It’s already being explored for 5G and 6G applications where flexibility, low latency, and interference suppression are paramount. Filter banks ensure that even in crowded frequencies, your data gets through clearly and reliably.

Biomedical Engineering

Here’s a lesser-known but powerful application—biomedical signal analysis. Whether it’s EEG brainwaves, ECG heart rhythms, or ultrasound imaging, filter banks help isolate and interpret complex biological signals. Wavelet-based filter banks are especially useful here, offering multi-resolution analysis to detect anomalies like epileptic seizures or arrhythmias. By enhancing signal clarity and reducing noise, filter banks make diagnosis more accurate and real-time health monitoring more effective. It’s one of those silent heroes improving lives from behind the scenes.

Common Challenges and Design Considerations

Aliasing

One of the biggest headaches in filter bank design is aliasing. When a signal is downsampled after filtering, overlapping frequencies can interfere with each other, distorting the output. This becomes especially problematic in systems without adequate filtering, like basic DFT-based banks. Advanced designs such as the polyphase filter bank help control aliasing by distributing the filtering process across multiple efficient stages. Still, improper implementation can lead to loss of signal integrity and degraded performance.

Perfect Reconstruction

Achieving perfect reconstruction—where the original signal can be exactly recreated after passing through the filter bank—is a gold standard. Not all filter banks guarantee this, especially when aggressive compression or non-ideal filters are used. In applications like image compression and audio encoding, even slight reconstruction errors can result in visible or audible artifacts. Techniques like DCT and wavelet-based filter banks aim for near-perfect results, but trade-offs are inevitable between fidelity and efficiency.

Computational Complexity

Let’s face it—filter banks can be math-heavy. High-resolution filters or large filter banks require significant processing power, especially in real-time applications like FBMC in wireless communication or Mel filter bank feature extraction in voice recognition. Optimizations like polyphase decomposition and fast transform algorithms help, but computational overhead remains a design challenge. Balancing performance and processing cost is key when deploying filter banks in embedded or mobile systems.

Comparison Table: Types of Filter Banks

Filter banks come in various types, each tailored to specific engineering problems. DCT filter banks are popular in compression due to their energy compaction efficiency but suffer from block artifacts. Polyphase filter banks shine in applications like TV and software-defined radio thanks to their low computational load and scalability, although they require careful design for perfect reconstruction.

Gabor filter banks are unmatched in feature extraction for images and biometrics but are computationally heavy. Mel filter banks, built on perceptual models, excel in speech recognition yet offer limited utility outside audio.

Wavelet-based filter banks provide multi-resolution insights, perfect for biomedical signals and image analysis, albeit with the need for specialized knowledge. Finally, FBMC is emerging as a next-gen alternative to OFDM in wireless communications, delivering superior spectral efficiency at the cost of higher complexity.

Use this comparison to align your choice of filter bank with your system’s performance goals and constraints.

Future Trends and Innovations in Filter Banks

The future of filter bank technology is tightly linked with advancements in AI, real-time systems, and machine learning. One of the most promising developments is the integration of AI-enhanced filter bank designs, where machine learning models optimize filter parameters dynamically. These intelligent systems can adapt filters in real time based on signal characteristics, improving performance in unpredictable environments like wireless networks or autonomous systems.

Another key innovation is real-time adaptive filtering. Traditional filter banks operate with fixed configurations, but emerging designs allow real-time reconfiguration depending on the application—like switching between Mel filter bank behavior for voice input and polyphase filter bank mode for data transmission. This makes modern filter banks far more versatile in mobile and embedded platforms.

Moreover, the synergy between filter banks and machine learning is driving new applications in edge computing. Lightweight filter bank structures are being used to preprocess data locally before sending it to the cloud. This reduces latency and bandwidth usage, which is vital for IoT devices, smart sensors, and wearable tech. As AI continues to shape digital signal processing, filter bank innovations will lead the way in enabling efficient, context-aware systems across industries.

Conclusion

Filter banks are no longer just academic tools—they’re foundational components across audio, image, communication, and biomedical systems. From the energy-focused DCT filter bank to the perceptual precision of the Mel filter bank, each type serves a unique purpose. We’ve also seen how polyphase and FBMC structures push the limits in real-time and wireless communication, while Gabor and wavelet-based filter banks shine in image and signal analysis.

Choosing the right filter bank depends on your goal: For compression, go with DCT; for speech, choose Mel; for next-gen networks, opt for FBMC; and for precision in medical or image analysis, wavelets are your best bet. As AI and edge computing evolve, expect even smarter and more adaptive filter bank designs ahead.

FAQs

What is a polyphase filter bank?

A polyphase filter bank is a highly efficient filter bank design that splits filters into smaller components called polyphase components. This structure reduces computational load and supports parallel processing, making it ideal for real-time applications like digital TV, radio, and Filter Bank Multicarrier (FBMC) systems.

What does a filter bank do?

A filter bank breaks a signal into multiple frequency subbands for separate analysis or processing. It allows engineers to manipulate specific frequency components without affecting the whole signal. This is useful in everything from audio equalizers to advanced wireless transmitters.

What is band pass filter?

A band pass filter is a type of filter that allows signals within a specific frequency range to pass through while attenuating frequencies outside that range. It’s a basic building block in many filter bank designs, used to isolate useful signal components.

What is a theory of multirate filter banks?

The theory of multirate filter banks deals with systems that use different sampling rates within their subbands. It provides the framework for efficient signal decomposition and reconstruction, ensuring minimal distortion and loss, particularly in applications like image compression, subband coding, and wavelet transforms.
