Photometry Explained: How We Measure Light the Way Humans See It

Have you ever tried to judge how bright a room is or evaluate a new lightbulb and had no idea where to start? Many people confuse good lighting with just brightness, without understanding the science behind it. This article on the Tech4Ultra Electrical website will walk you through the essentials of photometry—the science of light measurement—and show you how it can help you make smarter, more informed decisions, whether you’re an engineer or simply looking to improve your home lighting. Keep reading to discover the tools, methods, and standards that will transform the way you think about light!

The Science Behind Human Light Perception

Photopic vs. Scotopic Vision

The human eye isn’t a one-size-fits-all sensor. We see differently in daylight compared to near-darkness, thanks to two modes: photopic and scotopic vision. Photopic vision kicks in under well-lit conditions and is dominated by cone cells, giving us color perception and sharp detail. On the flip side, scotopic vision takes over in dim light, relying on rod cells which are highly sensitive to light but can’t detect color. Understanding these two systems is crucial in light measurement, especially when evaluating lighting environments for both daytime and nighttime use.

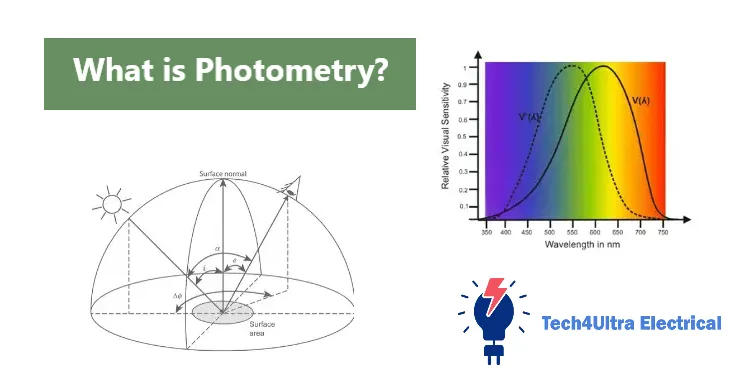

Human Eye Sensitivity Curve

Not all wavelengths of light are created equal—at least not to our eyes. The human eye has varying sensitivity across the visible spectrum, peaking around 555 nanometers, which appears green. This variation is mapped out in what’s called the human eye sensitivity curve. It shows how effectively different wavelengths stimulate the eye under photopic conditions, forming a foundation for accurate photometry.

Importance of the Luminosity Function

The luminosity function mathematically represents the eye’s sensitivity to different wavelengths. It’s essentially the weighting system for how we perceive brightness. In photometry, this function helps convert physical energy (watts) into visual brightness (lumens), making it essential for designing lighting systems that align with human perception.

Relevance to Photometry

All these aspects tie directly into photometry. By understanding how the eye perceives light under different conditions, we can better design, measure, and optimize lighting for human environments—whether it’s street lighting, office illumination, or display screens.

Read Also: Planar and Non-Planar Graphs Explained with Circuit Examples

Core Photometric Quantities

Luminous Flux

Luminous flux is like the total light a bulb emits in all directions, measured in lumens. Think of it as the “light power” flowing from a bulb. If you compare it to water, luminous flux is the total amount of water pouring out of a hose. More lumens mean a brighter light source. It’s a key concept in photometry because it defines how much visible light is being produced, regardless of direction.

Luminous Intensity

Luminous intensity focuses that light into a specific direction, measured in candelas. Using the hose analogy again, this would be like narrowing the hose nozzle to spray in a single direction. A flashlight with a focused beam has higher luminous intensity in its center than a regular lamp, even if both produce the same luminous flux. This concept is critical in applications like streetlights, where the direction of light matters as much as the amount.

Illuminance

Illuminance tells us how much light actually reaches a surface, measured in lux. Imagine placing a piece of paper under a lamp—illuminance is the amount of light hitting that paper. This is extremely important for tasks like reading or working, where the quality of lighting on a surface directly affects visibility and comfort. In light measurement, it bridges the gap between the source and how we experience the light.

Luminance

Luminance refers to how bright a surface appears to the eye, measured in candelas per square meter. It’s the light that reflects off a surface in a specific direction. Think of a TV screen—it doesn’t emit light in all directions equally, but only toward the viewer. Luminance is what determines whether we perceive a surface as bright or dull, and it plays a key role in display technology and lighting design.

Photometry vs Radiometry: A Practical Comparison

Defining Radiometry

Radiometry is the science of measuring all electromagnetic radiation, including visible light, infrared, and ultraviolet—regardless of how the human eye perceives it. It deals purely with energy, using units like watts, and doesn’t consider human vision at all.

Measurement Approach Differences

Photometry, on the other hand, focuses solely on visible light as perceived by the human eye. It uses a weighted system based on the luminosity function, which gives more importance to wavelengths we’re most sensitive to (like green). This is what makes units like lumens and lux meaningful to us—because they reflect human brightness perception, not just energy output.

Use-Case Examples

If you’re designing a solar panel, you’d rely on radiometry to measure total energy from the sun, including infrared and UV. But if you’re installing office lighting, photometry helps ensure the space looks well-lit and comfortable to the human eye. In short: radiometry is for raw energy analysis; photometry is for human-centric lighting design.

Measurement Tools and Techniques

Photometers

Photometers are the most common tools in photometry. They measure light intensity based on how the human eye perceives brightness. There are two main types:

• Visual photometers: These rely on human observation, where the user adjusts a standard light source to match the brightness of the test source. They’re simple and cost-effective but prone to human error and not ideal for precise measurements.
• Photoelectric photometers: These use sensors like photodiodes to convert light into electrical signals. They’re far more accurate and are commonly used in both labs and field applications for light measurement.

Goniophotometers

Goniophotometers are specialized instruments that measure the angular distribution of light from a source. Imagine a robotic arm rotating around a light bulb, capturing how the light spreads in every direction. These tools are essential in designing streetlights, headlights, and any application where beam direction matters. The downside? They’re large, complex, and expensive.

Integrating Spheres

Integrating spheres are hollow spherical devices coated with a reflective material inside. When a light source is placed inside, the light reflects evenly in all directions, allowing accurate measurement of total luminous flux. They’re perfect for capturing overall output without worrying about beam angle. However, they don’t show directional information and can be bulky.

Recent Advances: Digital Photometers

Modern digital photometers have brought portability and precision to the field. Many now include smartphone connectivity, data logging, and automatic calibration. They’re ideal for on-site lighting audits, making light measurement faster and more reliable than ever. However, cheaper models may sacrifice accuracy or lack advanced features needed for professional applications.

Pros and Cons Summary

• Visual photometers: Cheap, portable – but inaccurate and subjective.
• Photoelectric photometers: Accurate and fast – but more expensive.
• Goniophotometers: Excellent for directional data – but costly and complex.
• Integrating spheres: Great for total output – but not for directionality.
• Digital photometers: Modern, versatile – but vary in quality.

Key Units and Conversions in Photometry

Core Units Explained

Understanding the main units in photometry helps make sense of how we measure and apply light measurement in real life:

• Candela (cd): Measures luminous intensity, or the strength of light in a particular direction.
• Lumen (lm): Measures luminous flux, or the total light emitted by a source in all directions.
• Lux (lx): Measures illuminance, or how much light hits a surface. 1 lux = 1 lumen per square meter.
• Foot-candle (fc): A non-metric unit for illuminance used mainly in the U.S. 1 foot-candle = 10.764 lux.

How They Relate

Imagine a flashlight: the candela measures how strong the beam is in one direction, lumens tell you how much total light it emits, and lux (or foot-candle) measures how brightly that light hits a surface, like a wall or desk.

Quick Reference Table

Modern Applications of Photometry

Lighting Design

One of the most visible uses of photometry today is in lighting design. In architecture, designers use light measurement tools to ensure balanced illumination in homes, offices, and public spaces. It’s not just about brightness—it’s about creating ambiance, reducing glare, and maximizing energy efficiency. In automotive lighting, engineers use photometric data to design headlights that offer optimal visibility without blinding oncoming drivers. Street lighting also relies heavily on photometry to ensure roads are evenly lit, improving safety and reducing energy waste.

Product Testing

From LED bulbs to smartphone screens, photometry plays a critical role in testing and quality control. For instance, LED manufacturers test luminous flux, color temperature, and beam uniformity to meet consumer expectations. Monitor and TV screens are evaluated for luminance and illuminance to ensure visual comfort and color accuracy. These tests help brands stay competitive and meet user satisfaction benchmarks.

Safety and Compliance

Regulations in industries from construction to electronics require strict photometric compliance. Standards from organizations like ISO and CIE set guidelines on everything from workplace lighting levels to emergency exit signs. Without proper light measurement, companies risk non-compliance, fines, or worse—unsafe environments for employees and users. Accurate photometric testing ensures products and spaces not only perform well but also meet global safety expectations.

Watch Also: Voltaic Cell: Definition, Working, and Examples

Photometry in Emerging Technologies

Role in Smart Lighting Systems

Photometry is at the heart of modern smart lighting systems. These systems use real-time light measurement to adjust brightness and color temperature automatically based on occupancy, daylight levels, or user preferences. This dynamic control not only enhances comfort but also extends the lifespan of lighting fixtures by reducing unnecessary usage.

Use in Energy-Efficient Lighting

Designing energy-efficient lighting without sacrificing visibility requires precise photometric data. By measuring illuminance and luminous flux, manufacturers and designers can fine-tune LED and OLED systems to provide just the right amount of light where needed. This precision cuts down on wasted energy, supports green building standards, and contributes to sustainability goals.

Photometric Sensors in Automation and AI

In automation and AI, photometric sensors enable machines to “see” and respond to their environment. Whether it’s a robot navigating through a warehouse or a camera adjusting exposure in a self-driving car, these sensors collect critical light measurement data. This data helps systems make informed decisions, ensuring performance and safety in real-time operations.

Conclusion

Photometry is more than just measuring light—it’s about understanding how humans experience it. From core concepts like luminous flux and illuminance to modern tools like photometers and goniophotometers, the field provides essential insights across industries. Whether you’re designing a smart lighting system, testing LEDs, or ensuring compliance with global standards, light measurement plays a critical role.

As technology advances, the demand for accurate, efficient, and adaptive lighting solutions continues to grow. From AI-powered sensors to energy-efficient architecture, photometry will remain central in shaping how we see and interact with the world. In short, mastering this science isn’t just useful—it’s becoming essential.

Common Misconceptions and FAQs

Many people confuse photometry with radiometry or colorimetry. While all involve light measurement, their purposes are different. Radiometry measures all electromagnetic radiation, not just visible light. Colorimetry focuses on how we perceive color, whereas photometry deals specifically with visible light as perceived in brightness.

?Is more lumens always better

A: Not necessarily. More lumens mean more light, but the effectiveness depends on where and how the light is used.

?Can I measure light with my phone

A: Some apps estimate illuminance, but they’re not as accurate as dedicated photometers.

?What’s the difference between lux and lumens

A: Lux measures light on a surface; lumens measure total light output.

?Why is green light used in measurements

A: The human eye is most sensitive to green light, so it’s a key reference point in photometry.

?Do photometric units apply to colored lighting

A: Yes, but readings vary based on color and how our eyes perceive it.

What is Reflectance Photometry?

Reflectance photometry measures the amount of light reflected off a surface to determine properties like color or concentration of substances. It’s widely used in medical diagnostics, such as analyzing blood samples in test strips, where light measurement reveals chemical changes based on reflectivity.

Which Are the Two Types of Photometry?

The two main types of photometry are visual photometry and photoelectric photometry. Visual photometry relies on human comparison of light intensity, while photoelectric photometry uses sensors to measure light objectively. The latter is more accurate and widely used in scientific and industrial settings.

What is Flame Photometry?

Flame photometry, also known as flame atomic emission spectrometry, is a technique for detecting specific metal ions based on the color and intensity of light emitted by a flame. Though related, it’s more aligned with analytical chemistry than pure photometry.

What Do You Mean by Photometry?

Photometry is the science of measuring visible light in terms of how it’s perceived by the human eye. It involves quantities like luminous flux, illuminance, and luminance, and is essential for applications ranging from lighting design to display testing and safety compliance.

What is the Difference Between Photometry and Spectroscopy?

Photometry measures the intensity of visible light as perceived by the human eye, using units like lumens and lux. Spectroscopy, on the other hand, analyzes light by its wavelengths, identifying chemical compositions and material properties. While photometry tells us “how bright,” spectroscopy tells us “what it’s made of.”

What is a Photometer and Its Uses?

A photometer is an instrument used to measure light intensity. It’s widely used in lighting design, laboratory analysis, screen calibration, and quality control. Whether you’re checking if your office lighting meets safety standards or testing a monitor’s brightness, light measurement starts with a photometer.

How Does Photometry Work?

Photometry works by capturing light and converting it into a readable value based on human brightness perception. Devices like photometers often include filters to mimic the eye’s sensitivity curve, ensuring the results align with how we actually see brightness.

How Do You Use a Flame Photometer?

To use a flame photometer, you introduce a liquid sample into a flame. As the sample burns, it emits light at specific wavelengths depending on its chemical content. The device then measures this light to determine the concentration of elements like sodium or potassium. It’s a staple in medical and agricultural labs.

Where is a Photometer Used?

Photometers are used in various fields: architecture, automotive design, electronics manufacturing, healthcare, and environmental science. Wherever there’s a need to measure or regulate light levels, photometry plays a role—from street lighting audits to LED performance testing.
